Vertical Capstan
Vertical Capstan
Features
1.An extremely versatile vertical capstan or general purpose electric
winch for use as an anchor winch,pot hauler or davit winch.
2.The compact, fully sealed gearbox is driven by a vertically mounted
3.Gearbox housings are marine grade alloy and drum is Stainless steel
4.line hauling from any direction
5.Easily disassembled for servicing
6.Fit include hand-switch, foot-switch, control box and wrench
2.The compact, fully sealed gearbox is driven by a vertically mounted
3.Gearbox housings are marine grade alloy and drum is Stainless steel
4.line hauling from any direction
5.Easily disassembled for servicing
6.Fit include hand-switch, foot-switch, control box and wrench
Specifications
| Model | Weight | Power | No load | Motor | Max. | Max. | Line | Rope | ||
| Net(DC) | DC | absorption | (W) | load | Pull | Speed | size | |||
| Capstan-001 | 7kg | 12V/24V | 60A | 600 | 160kg | 320kg | 22m/min | 12mm | ||
| Capstan-002 | 14kg | 12V/24V | 80A | 1000 | 260kg | 420kg | 20m/min | 14-16mm | ||
| Capstan-003 | 18kg | 12V/25V | 120A | 1400 | 340kg | 900kg | 20m/min | 16-18mm | ||
The measruement/size may be different between the table and goods delivered, please check with us when order placed.

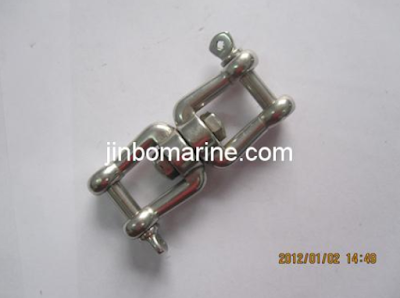

Swivel Shackle
China Swivel Shackle:
Swivel Shackle
Material: SS304, SS316
Size: 6mm-45mm
Material: SS304, SS316
Size: 6mm-45mm
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China JIS F 3403 Riging Screws
China JIS F 3403 Riging Screws:
Drop forged frame with a solid thimnle and bolt ends, Rigging Scews used for standing rigging of ships' mast and post.
Please specify the diameter of wirel rope to be used when ording, also please specify galvanized or ungalvanized.
Rigging Screws Construction and Material
Specification
| Nominal Size | Dia. Of Wire Rope | Nomial Size of Wire Socket | SWL(Ton) | Weight(Kg) |
| 14 | 14 | 2.1 | 5.97 | |
| 16 | 16 | 16 | 2.6 | 8.58 |
| 18 | 18 | 18 | 3.3 | 11.6 |
| 22 | 20-22.4 | 20-22 | 5.5 | 14.8 |
| 24 | 24 | 24 | 5.9 | 19.4 |
| 26 | 25 | 26 | 6.9 | 23.9 |
| 30 | 28-30 | 28-30 | 9.2 | 30.2 |
| 32 | 32 | 32 | 10.5 | 43.2 |
| 36 | 36 | 36 | 13 | 51.1 |
| 38 | 38 | 38 | 14.5 | 59.9 |
| 40 | 40 | 40 | 16.5 | 70.7 |
| 42 | 42.5 | 42 | 18.5 | 93.5 |
| 45 | 45 | 45 | 21 | 105 |
| 48 | 47.5 | 48 | 23 | 117 |
| 50 | 50 | 50 | 25.5 | 124 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Marine Portable Axial Fan
China Marine Portable Axial Fan:
Marine Portable Axial Fanis practical, light, with the strong suction
ability. It can be moved conveniently. It is the professional fans used
in the shipbuilding, machinery, chemical, engineering fields. The fan
can be connected with the flexible duct easily to extract the gas, dust
to other places and ventilate in the enclosed space.
Material:
Case: Steel Plate
Impeller: Casting Aluminum Alloy
Impeller: Casting Aluminum Alloy
Specification:
Size:200MM，250MM，300MM，350MM，400MM，450MM，500MM，600MM
Voltage:36V，110V，220V，380V，440V
Frequency:50Hz,60Hz
200mm~350mm with handle and One-piece switch
350mm~600mmcan be with foot stand
400mm~600mmwith handles in two sides
Voltage:36V，110V，220V，380V，440V
Frequency:50Hz,60Hz
200mm~350mm with handle and One-piece switch
350mm~600mmcan be with foot stand
400mm~600mmwith handles in two sides
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Marine Flat Sight Glass JIS F7234 5K
China Marine Flat Sight Glass JIS F7234 5K:
Design Standard: JIS F7234-1995
Test Standard: JIS 7400
Hydraulic Test Pressure: Body- 7.5kgs
Flange size as per JIS B2220 - 5K
Main Material:
1-Body: Cast Iron (FC200 or FCD400,FCD450)
2-Flat Glass: tempered glass
3-Cover: Cast Iron (FC200 or FCD400,FCD450)
4-Flapper: Stainless Steel ( SUS304)
2-Flat Glass: tempered glass
3-Cover: Cast Iron (FC200 or FCD400,FCD450)
4-Flapper: Stainless Steel ( SUS304)
Main Size List(mm):
| Series | DN | |||||||||
| 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||
| Series A | L | 150 | 150 | 170 | 200 | 200 | 220 | 250 | 270 | 320 |
| C | 40 | 40 | 50 | 70 | 70 | 80 | 100 | 120 | 150 | |
| Series B | L | 140 | 150 | 160 | 200 | 200 | 220 | 250 | 270 | 320 |
| C | 40 | 50 | 50 | 60 | 60 | 65 | 80 | 102 | 125 | |
| Series C | L | 150 | 150 | 150 | 180 | 180 | 190 | 240 | 260 | 300 |
| C | 42 | 42 | 42 | 62 | 62 | 70 | 105 | 120 | 145 | |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
2016年8月15日星期一
China Agricuture Anchor
China Agricuture Anchor:
Material: Steel Plate
Weight: 50KGS-6000KGS
Finish: Painting
Weight: 50KGS-6000KGS
Finish: Painting
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Three Roller Fairlead
China Three Roller Fairlead:
Marine fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
1.Reliabe quality with competitive price.
2.CCS,BV,ABS,DNV,RINA mill certificate.
3.Material:Steel plate,steel pipe.
4.Surface:blasting,painting zinc rich primer.
Different standards marine fairlead available,customize service also can be provide.
3 roller failread,4 roller fairlead,5 roller fairlead,6roller fairlead,7 roller fairlead,8 roller fairlead,9 roller fairlead,10 roller fairlead,11 roller fairlead,12 roller fairlead,13 roller fairlead.
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China 110Ton J Chain Chaser
China 110Ton J Chain Chaser:
We supply the 100Ton J chasers with BV Certificate and Mill Certificate
to Malaysia, Indonesia, Safety, High Quality and Fast Delivery, please
feel free to contact us if you have inquiry.
Except 110Ton J Chaser Hook, we also can supply 200T, 250T capacity.
Except 110Ton J Chaser Hook, we also can supply 200T, 250T capacity.
110T J Chaser Specification
TEST PROOF LOAD: 1347.5 KN
WEIGHT: 1882 KG
MATERIAL: ZG230-450
WEIGHT: 1882 KG
MATERIAL: ZG230-450
110T J Chaser Drawing
110Ton BV Approved Chain Chaser and Grapnel
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Wire Rope Carpenter Stopper
China Wire Rope Carpenter Stopper:
Carpenter Stoppers have a
hinged body that has a fixed smooth groove on one side. It is movable wedge,
grooved with lay of cable, on the facing side. The movable wedge enables the
cable to be drawn tight. They are individually proof tested to twice the
working load limit of XIP wire rope.
The cable can be released while under the full tension by releasing the latch on the hinged lid. The Lid is securely latched and locked with a pin while in use.
Shackle holes are provided for rigging a bridle to the stopper. Bridles are available with stoppers if desired.
Rugged, compact design cable grip for cable sizes from 5/16″ to 3″.
The cable can be released while under the full tension by releasing the latch on the hinged lid. The Lid is securely latched and locked with a pin while in use.
Shackle holes are provided for rigging a bridle to the stopper. Bridles are available with stoppers if desired.
Rugged, compact design cable grip for cable sizes from 5/16″ to 3″.
Specification:
Proof Load: 1.5xSWL
Breaking Load: 5xSWL
Breaking Load: 5xSWL
Carpenter Stopper Drawing
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Heavy Duty Mooring Winch
Heavy Duty Mooring Winch
General description
Wild range towing capacity can fit different vessel for towing operation
with electric or hydraulic power driven by electric or diesel engine.
High quality, easy operation, compact design, smooth operation for the
lines without twisting.
Main parameter
For the 400Kn ship-shifting winch
Rated pull: 400kn
Nominal speed: 0-20m/min
Cable Diameter: 60mm
Capacity cable:300m
Holding load:1200 kn
Warping end load: 100kn
Working pressure: 16Mpa
Flow rate: 960L/min
We can adjust the working load and drum capacity according to customers requirements.
Rated pull: 400kn
Nominal speed: 0-20m/min
Cable Diameter: 60mm
Capacity cable:300m
Holding load:1200 kn
Warping end load: 100kn
Working pressure: 16Mpa
Flow rate: 960L/min
We can adjust the working load and drum capacity according to customers requirements.
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
CWZ Marine or Navy Small Axial Fan
CWZ Marine or Navy Small Axial Fan
General:
CWZ series marine or navy small axial fan is suitable for ventilation of
kitchen,lavatory,bulkhead,the public place and meeting room etc, in the
naval and merchant ships. They are also applicable in other suitable
places.
Features:
The fan has low noise, small size, light weight, stable performance,etc.
In the procedure of design and manufacturing, the marine special conditions have been thought.The impellers are strictly made by dynamic balance adjustment and overspeed test. Therefore, the fan also has the features of good-anti-corrosion, anti-swing,vibration resistance, shock resistance,stable running and safety, reliability.
The fan can be with 380V,440V, 220V/50Hz, 60Hz.
In the procedure of design and manufacturing, the marine special conditions have been thought.The impellers are strictly made by dynamic balance adjustment and overspeed test. Therefore, the fan also has the features of good-anti-corrosion, anti-swing,vibration resistance, shock resistance,stable running and safety, reliability.
The fan can be with 380V,440V, 220V/50Hz, 60Hz.
Structural Types:
Type I-- Tube Type, connected with short tubes or fixed on the bulkhead.
Type ii--Porthole Type, fixed on porthole or bulkhead. With the waterproof device, it can be easily opened or closed to keep rain or sea water out.
Impellers are made of cast aluminum alloy,the case is welded by steel plate.
https://www.jinbomarine.com/cwz-marine-or-navy-small-axial-fan.html
Type ii--Porthole Type, fixed on porthole or bulkhead. With the waterproof device, it can be easily opened or closed to keep rain or sea water out.
Impellers are made of cast aluminum alloy,the case is welded by steel plate.
https://www.jinbomarine.com/cwz-marine-or-navy-small-axial-fan.html
2016年8月14日星期日
China Single Lashing Eyes
China Single Lashing Eyes:
1.All items are approved by major classification
societies
2.customized design is available.
Material: Forged steel
Finish: paint
Weight:1.8kg
MIN BREAKING LOAD:500KN
Certification: All items are approved by major classification societies
Remarks: customized design is available
Our scope of supply( cotainer fastners ) covers the follows:
D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, ETC.
2.customized design is available.
Material: Forged steel
Finish: paint
Weight:1.8kg
MIN BREAKING LOAD:500KN
Certification: All items are approved by major classification societies
Remarks: customized design is available
Our scope of supply( cotainer fastners ) covers the follows:
D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, ETC.
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Controllable Pitch Propeller Bow Thruster
China Controllable Pitch Propeller Bow Thruster:
CPP bow thruster have diesel engine drive
type and electric motor drive type.It have vertical installation type and
horizontal installation type.
It is design based on concept of reliability, durability, high efficiency and easy maintenance.
The power can from 200 KW-2930KW.
Diameter from1100mm-2800mm.
Thrust force from 16KN-462KN.
It is design based on concept of reliability, durability, high efficiency and easy maintenance.
The power can from 200 KW-2930KW.
Diameter from1100mm-2800mm.
Thrust force from 16KN-462KN.
Feature:
1.The propeller’s diameter and speed combination is optimized,improved
the propulsion efficiency.It can keep the same thrust force evenwe
reduce its diameter .
2.The thruster adopt skew and large area ratio blade,with very low vibration.
3.These high strength gears and bearings via good lubrication and cooling treatment,improve the reliability of the machine.
4.It can safisfy the requirements of marine pollution prevention.
5.Compact structure and easy installation and maintenance.
2.The thruster adopt skew and large area ratio blade,with very low vibration.
3.These high strength gears and bearings via good lubrication and cooling treatment,improve the reliability of the machine.
4.It can safisfy the requirements of marine pollution prevention.
5.Compact structure and easy installation and maintenance.
China Two-axis Electric Combined Windlass
China Two-axis Electric Combined Windlass:
Two-axis Electric Combined Windlass
General description
The combined and capstan are for heaving, launching and mooring, which are in accordance with ISO4568-1986<>. They are driven by hand, electric, hydraulic and diesel engine. The structure types are divided into: systematic double-chain anchor winch (A type);single-chain anchor winch(B type) anchor capstan(E type).
Type illustration
The first letter: D-electric Y-hydraulic S-manual C-diesel engine
The letter M: anchor winch
The third letter: Type A,B,E
Main technical parameter
https://www.jinbomarine.com/two-axis-electric-combined-windlass.html
2016年8月9日星期二
4 Point Mooring Winch
4 Point Mooring Winch
General description
4 point mooring winch is mainly used to the barge mooring system, apply 4
corner point to secure the barge on water, The working load from 100kn
to 1000kn etc, also the spooling device,centra control station and CCTV
are available for the additional requirements, high quality, powerful
working load with good flow rate hydraulic station powered by diesel
engine.
It can use to the barge which have no power supply, easy to installation and can be moveable in any place.
It can use to the barge which have no power supply, easy to installation and can be moveable in any place.
The working technical requirements;
Environment temperature: 45℃
Sea water temperature: 32℃ Ambient pressure: 0.1MPa
Relative humidity: 70%
Classification and rules： CCS and relevant standards Certificate: CCS certificate，factory certificate。
Unit: ISO
Sea water temperature: 32℃ Ambient pressure: 0.1MPa
Relative humidity: 70%
Classification and rules： CCS and relevant standards Certificate: CCS certificate，factory certificate。
Unit: ISO
Material:
Main components material of 200kN hyd. mooring winch（comply with CCS rules）：
Skid and frame： Q235-A
Warping end： Steel casting
Bush： Brass
Drum： Q235-A
Gear： Big gear ZG270-500
Pinion 40Cr
Shaft： 40Cr
Brake band： Non-asbestos
https://www.jinbomarine.com/4-point-mooring-winch.html?ref=related
China Fixed pitch propeller
China Fixed pitch propeller :
Our products has been approved by ABS, BV,
CCS, DNV, GL, KR, LR, NK and etc., and obtained the authentication certificate
of Quality System
We can design and supply various kinds of propellers for container ships, tankers, tug boats, trawlers, fishing boats and yachts, etc.Please supply us your drawing or samples to let us help you manufacture the propeller you need.
We can design and supply various kinds of propellers for container ships, tankers, tug boats, trawlers, fishing boats and yachts, etc.Please supply us your drawing or samples to let us help you manufacture the propeller you need.
features:
1.Good reliability
2.Simple structure
3.Convenient to operate and maintain
Related components for the fixed pitch propeller includes:nozzle, shaft, stern tube, shaft seal and bearing, water lubrication system, torque measurement system, blocking device, shaft brake, and grounding device.
Material: Cu1, Cu2, Cu3, Cu4, etc.
Diameter of propeller: ø500mmto ø7000mm
Number of blade: 3, 4, 5, 6, or 7
Max. rotate speed: 150rmp to 550rmp
Transmission capacity: 2.5kW/rmp to 170kW/rmp
Thrust: 12.2T to 161T
2.Simple structure
3.Convenient to operate and maintain
Related components for the fixed pitch propeller includes:nozzle, shaft, stern tube, shaft seal and bearing, water lubrication system, torque measurement system, blocking device, shaft brake, and grounding device.
Material: Cu1, Cu2, Cu3, Cu4, etc.
Diameter of propeller: ø500mmto ø7000mm
Number of blade: 3, 4, 5, 6, or 7
Max. rotate speed: 150rmp to 550rmp
Transmission capacity: 2.5kW/rmp to 170kW/rmp
Thrust: 12.2T to 161T
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Application
Application
Aluminium Boat is fully welded boat offering several unique advantages
like stability, durability, high impact resistance and abrasion
resistance. This boat also has an excellent high speed riding feature
with a high load capacity. Due to the welded construction of these
boats, it makes the hull extremely strong, making it suitable for users
like professional divers, diving schools and even fishermen. The boat
also helps fire brigades get into hard to maneuver areas along rivers
and lakes to fight fires.
More detials, please contact us.
https://www.jinbomarine.com/aluminium-boat.html
More detials, please contact us.
https://www.jinbomarine.com/aluminium-boat.html
China 55000T Hydraulic Marine Hatch Cover
China 55000T Hydraulic Marine Hatch Cover:
The hatch covers for each cargo hold could be made of 2, 4 or 6 panels,
which can be folded to fore&after sides by the mode of 2+2 or 2+4.
Hatch cover uses flat-topped mode and mixed-frame structure, and its
uniformly distributed load meets the requirements of international
conventions. Watertight rubber uses sponge-core tape, hatch cover has
two drainage systems to improve the watertight performance. Around the
hatch cover has open-type fast cleats. Open&close hatch cover by
hydraulic power which works smoothly, reliably and without noise. The
time for opening the hatch cover is about 5 minutes.
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China High Velocity PV Valve with Heating Device
China High Velocity PV Valve with Heating Device:
High Velocity PV valve for cargo oil tank is generally used in the relief system of the oil tanker and chemical tanker, according to the current regulations IMO and IBC.The purpose of the high velocity valve is to provide automatic control of pressure differentials during liquid cargo ship loading, voyage,ballasting and de-ballasting without any manual operation, also, it provides auto-protection against fire and explosions on deck. Additionally in the event that the inert gas system can not supply gas promptly, the vacuum valve can auto open to protect the tank against excessive vacuum when de-ballasting on dock. Normal, when the pressure risen in tank because of temperature or loading, the pressure valve open automatically and vent gas. When the pressure of tank come to pressure differentials, the vacuum valve or pressure valve all can be automatic resetted. If an ignition occurs outside the tank space, the flames will be quenched in the flame trap.
In accordance with the requirements of ISO15364, if the vessel navigates constantly in the poor ice conditions, it is very likely that the cystalliztion of the goods happens due to the vapor condensation.So that the PV valve should be required with the heating device. The heating achieved by steam supplied by the vessel.
The heating device is with simple structure, can be heated circularly with hot steam and thermal fluid less than 1.2Mpa.
Certificate: CCS, BV
Material: Stainless Steel, Cast Steel
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
2016年8月8日星期一
US Type Screw Pin Chain Shackle G210
US Type Screw Pin Chain Shackle G210
Similar Name
US Type Screw Pin Chain Shackles G-210
US Type Bolt Chain Shackle G-210
US Type Straight Shackle G-210
US Type High Strength Shackle G-210
US Type Alloy Steel Shackle G-210
US Type Bolt Chain Shackle G-210
US Type Straight Shackle G-210
US Type High Strength Shackle G-210
US Type Alloy Steel Shackle G-210
Main Specification:
- U type body and a lateral pin.
- Drop Forged
- 45# Steel and 40Cr Steel
- Used in lifting or fasten cargo or machinery purpose.
Size Table
| Nominal Size(in) |
WLL (Tons) |
Dimension(in) | Weight（lbs) | |||||||||
| A | B | C | D | E | F | G | K | L | M | G210/S210 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.62 | 0.97 | 1.59 | 0.19 | 1.43 | 0.11 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.15 | 0.75 | 1.07 | 1.91 | 0.22 | 1.71 | 0.17 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.42 | 0.92 | 1.28 | 2.31 | 0.25 | 2.02 | 0.28 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.48 | 2.67 | 0.31 | 2.37 | 0.43 |
| 1/2 | 2 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.18 | 1.66 | 3.03 | 0.38 | 2.69 | 0.59 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 0.63 | 0.63 | 2.32 | 1.5 | 2.04 | 3.76 | 0.44 | 3.34 | 1.25 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.4 | 4.53 | 0.5 | 3.97 | 2.63 |
| 7/8 | 6 1/2 | 1.44 | 1 | 0.97 | 0.88 | 3.2 | 2.1 | 2.86 | 5.33 | 0.5 | 4.5 | 3.16 |
| 1 | 8 1/2 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.24 | 5.94 | 0.56 | 5.13 | 4.75 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.69 | 3.61 | 6.78 | 0.63 | 5.71 | 6.75 |
| 1 1/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.97 | 7.5 | 0.69 | 6.25 | 9.06 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 1.5 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | 0.75 | 6.83 | 11.63 |
| 1 1/2 | 17 | 2.38 | 1.63 | 1.62 | 1.5 | 5.38 | 3.62 | 4.84 | 9.05 | 0.81 | 7.33 | 15.95 |
| 1 3/4 | 25 | 2.88 | 2 | 2.12 | 1.75 | 6.38 | 4.19 | 5.78 | 10.97 | 1 | 9.06 | 26.75 |
| 2 | 32 | 3.25 | 2.25 | 2.36 | 2.1 | 7.25 | 5 | 6.77 | 12.74 | 1.13 | 10.35 | 42.31 |
| 2 1/2 | 55 | 4.12 | 2.75 | 2.63 | 2.63 | 9.38 | 5.68 | 8.07 | 14.85 | 1.38 | 13 | 71.75 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Emergency Light CXH9
Emergency Light CXH9
Main Specification:
| Type | CXH9-5 | CXH9-6 |
| Voltage | 24V | |
| Power | 30W | |
| Visibility | 2n.m | |
| Lamp Holder | B15d | |
| Color | Red, Green, White | |
| Protection Class | IP55 | |
| Cable Diameter | Dia10-12 | |
| Material | Steel | |
| Weight | 1.15kgs | |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China WS MK3 Anchor:
WS MK3 Anchor is the improved version
of drag Anchor, equipped with an enlarged crown and fluke area and a
streamline shank for more efficient penetration, this anchor is used in drag
and drilling activities.
This anchor approved by International class society.
We can delivery to everywhere around the world according to Incoterms 2010
This anchor approved by International class society.
We can delivery to everywhere around the world according to Incoterms 2010
Main Dimension( mm in dimension, KGS in anchor weight)
| Weight | A | B | C | D | E | K | L | S |
| 1000 | 2429 | 2654 | 1559 | 2023 | 737 | 1010 | 412 | 60 |
| 1500 | 2774 | 3038 | 1785 | 2316 | 843 | 1156 | 471 | 65 |
| 3000 | 3493 | 3828 | 2249 | 2918 | 1063 | 1456 | 594 | 80 |
| 5000 | 4120 | 4538 | 2667 | 346 | 1260 | 1727 | 704 | 80 |
| 7000 | 4602 | 5077 | 2983 | 3871 | 1409 | 1932 | 788 | 90 |
| 9000 | 5012 | 5521 | 3244 | 4209 | 1533 | 2100 | 857 | 100 |
| 12000 | 5516 | 6076 | 3570 | 4632 | 1687 | 2312 | 943 | 110 |
| 20000 | 6372 | 6986 | 4100 | 5324 | 2048 | 2674 | 1083 | 160 |
| 30000 | 7289 | 7997 | 4694 | 6094 | 2345 | 3061 | 1240 | 180 |
How to connect MK3 Anchor and Chain
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Multifunctional Pier Marine Towing Hook
China Multifunctional Pier Marine Towing Hook:
Brief description:
The towing hook enable the ships can be towed in safety under emergency situations.
It is easy to handle,and can be release quickly.
| TYPE | SWL (t) | A (mm) | B (mm) | L (mm) | R1 (mm) | R2 (mm) |
| ETH-30 | 30 | 210 | 340 | 1050 | 65 | 430 |
| ETH-40 | 40 | 220 | 345 | 1100 | 65 | 450 |
| ETH-50 | 50 | 276 | 448 | 1332 | 80 | 577 |
| ETH-60 | 60 | 295 | 475 | 1415 | 85 | 613 |
| ETH-80 | 80 | 350 | 560 | 1680 | 100 | 721 |
| ETH-100 | 100 | 450 | 630 | 2100 | 125 | 921 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Rope Mop Oil Skimmer
Rope Mop Oil Skimmer
Rope mop oil skimmer is a durable and
effective oil spill recovery device, mainly consists of power, hydraulic reel
pipe, extruder and oil wick for absorbing oil spill. It can recover oil spill
of carious viscosity in rugged environment and can be widely used for oil spill
recovery in marine, rivers, lakes pools and industrial wastewater.
Features
The oil wick made of oleophylic
polypropylene fiber has excellent oleophylic performance, which will still
receive oil even if being stained with. The specific gravity of oil wick is
about 0.9, so it can float on water and move along the wave, keeping in touch
with oil layer.
The working temperatures of oil wick ranges from -35 to 70c, which makes it even able to recover oil spill under ice layer.
It can work in narrow space regardless of the floating debris, such as deep well.
Both car bottom type skimmer and suspending skimmer are provided. Car bottom type skimmer is fixed on shore or vessel, recovering oil skimmer by floating guide pulley and long oil wick. In the suspending type, oil wick is hung on the surface of oil spill by a crane, which is conveniently operated and can work in atrocious sea condition.
The working temperatures of oil wick ranges from -35 to 70c, which makes it even able to recover oil spill under ice layer.
It can work in narrow space regardless of the floating debris, such as deep well.
Both car bottom type skimmer and suspending skimmer are provided. Car bottom type skimmer is fixed on shore or vessel, recovering oil skimmer by floating guide pulley and long oil wick. In the suspending type, oil wick is hung on the surface of oil spill by a crane, which is conveniently operated and can work in atrocious sea condition.
Technical parameter
|
Skimmer mode
|
Diameter of oil wick(mm)
|
Quantity of oil wick
|
Oil receiving rate(m3/h)
|
Skimmer type
|
|
SS0.3
|
100
|
1
|
0.3
|
Suspending type
|
|
SSC3
|
150
|
1
|
3
|
Car bottom type
|
|
SS5
|
230
|
1
|
5
|
Combined suspending type
|
|
SS10
|
2
|
10
|
||
|
SS20
|
4
|
20
|
||
|
SS30
|
6
|
30
|
||
|
SS40
|
350
|
6
|
40
|
|
|
SS60
|
8
|
60
|
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Marine Single-Leaf Aluminum Weathertight Door Drawing
Marine Single-Leaf Aluminum Weathertight Door Drawing
China Marine Single-Leaf Aluminum Weathertight Door:
Standard: CB/T454-97
The aluminum weathertight door is used as the doorway of superstructure above freeboard deck or deck house. Operated by dog clips.
Type A-Framed Aluminum weathertight door
Type B-Molded Aluminum weathertight door
Material: Aluminum Alloy LF5
The aluminum weathertight door is used as the doorway of superstructure above freeboard deck or deck house. Operated by dog clips.
Type A-Framed Aluminum weathertight door
Type B-Molded Aluminum weathertight door
Material: Aluminum Alloy LF5
Main Size List(mm):
| Size of Doorway | Size of Door | Opening Size of Wall | h | Qty of clip |
| BXLXR | B1XL1XR1 | B2XL2XR2 | ||
| 500X1000X100 | 540X1040X120 | 580X1080X140 | 300 | 4 |
| 500x1200x100 | 540X1240X120 | 580X1280X140 | 400 | 5 |
| 500x1400x100 | 540X1440X120 | 580X1480X140 | 500 | 5 |
| 600X1200X100 | 640X1240X120 | 680X1280X140 | 400 | 5 |
| 600X1400X100 | 640X1440X120 | 680X1480X140 | 500 | 5 |
| 650X1600X100 | 690X1640X120 | 730X1680X140 | 600 | 5 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
Rotating Oiltight Hatch Cover Drawing
Rotating Oiltight Hatch Cover Drawing
China Rotating Oiltight Hatch Cover:
Standard: CB/T282-94
The rotating oiltight hatch cover is used as the oil tight hatch cover of cargo tank passageway onboard oil tanker.
https://www.jinbomarine.com/rotating-oiltight-hatch-cover.html
The rotating oiltight hatch cover is used as the oil tight hatch cover of cargo tank passageway onboard oil tanker.
https://www.jinbomarine.com/rotating-oiltight-hatch-cover.html
China Marine Bow Thruster
China Marine Bow Thruster:
It
usually built into, or mounted to, either the bow or stern, of a ship or boat,ensure
good maneuverability.
Bow thruster is mainly used for docking,slow speed maneuvering,emergency steering.
Bow thruster is mainly used for docking,slow speed maneuvering,emergency steering.
Advantages:
Fixed
and controllable-pitch propellers available.
Combinable with diesel, hydraulic or electric drive
Combinable with diesel, hydraulic or electric drive
Product list:
|
No.
|
Part
Description
|
Material
|
|
1
|
Blade,
Hub
|
Nickel-aluminum
bronze. Meet classification rules.
|
|
2
|
Drive
Shaft, Gear
|
High
class alloy steel. Tooth surface is hardened. Meet classification rules.
|
|
3
|
Propeller
Shaft
|
High
class alloy steel. Meet classification rules.
|
|
4
|
Gear
Box
|
Cast
iron. Meet classification rules.
|
|
5
|
Tunnel
|
Class
B steel plate. Meet classification rules.
|
|
6
|
Propeller
Shaft Seal, O Ring
|
NBR
|
|
7
|
Hand
pump,gravity tank,coupling
|
standard
|
|
Optional
|
||
|
8
|
Motor
brand
|
HengLi
,ABB,Siemens,Schneider
|
|
9
|
Frequency
Inverter brand
|
Vacon,
Danfoss,Siemens,Schneider
|
|
10
|
Central
control box,control panel
|
Siemens
electronic component
|
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China HAQ-1 Flush Type Auto-Telephone
China HAQ-1 Flush Type Auto-Telephone:
| Type: HAQ-1 |
| Color:Dull Black |
| Protection Class: IP20 |
| Hull Material: ABS |
| Ringing Loundness: >85db |
| Installation: Flush Type |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China OCIMF Type Towing Bracket
China OCIMF Type Towing Bracket:
The towing bracket can welded to the deck,it can withstand the breaking load of the chain being used.
Mainly use For Emergency Towing System and Single Point Mooring.
Mill certificate.
Left hand,right hand towing bracket.
We can customized towing bracket according to customer's drawing.
https://www.jinbomarine.com/ocimf-type-towing-bracket.html?ref=related
Mainly use For Emergency Towing System and Single Point Mooring.
Mill certificate.
Left hand,right hand towing bracket.
We can customized towing bracket according to customer's drawing.
https://www.jinbomarine.com/ocimf-type-towing-bracket.html?ref=related
2016年8月7日星期日
China WRY High Efficiency And Energy Saving Hot Oil Pump
China WRY High Efficiency And Energy Saving Hot Oil Pump:
General description
This pump is using fluid mechanics principle,It Reduce the motor power Without reducing the circulation pump flow conditions To achieve the purpose of saving energy and reducing consumption.
Technical Parameter
This pump is using fluid mechanics principle,It Reduce the motor power Without reducing the circulation pump flow conditions To achieve the purpose of saving energy and reducing consumption.
Technical Parameter
| Model | Capacity | Head | Speed | Power | Efficiency | NPSH | |
| WRY | m3/h | m | rpm | Shaft | Motor | % | m |
| 150-125-260 | 150 | 16 | 1460 | 8.5 | 11 | 76 | 2.5 |
| 150-125-320 | 120 | 30 | 1460 | 12 | 11 | 74 | 3 |
| 150-125-270 | 160 | 18 | 1460 | 12 | 15 | 74 | 3 |
| 150-125-360 | 120 | 36 | 1460 | 11.76 | 15 | 74 | 4 |
| 150-125-380 | 130 | 40 | 1460 | 15 | 18.5 | 78 | 3.8 |
| 150-125-280 | 180 | 20 | 1460 | 15 | 18.5 | 78 | 3.8 |
| 150-125-320 | 200 | 32 | 1470 | 26 | 30 | 70 | 3.6 |
| 175-150-350 | 140 | 38 | 1470 | 20 | 22 | 70 | 3.6 |
| 175-150-380 | 160 | 48 | 1470 | 25 | 30 | 72 | 3.6 |
| 175-150-400 | 180 | 50 | 1475 | 31 | 37 | 75 | 4 |
| 200-150-400 | 260 | 50 | 1480 | 35 | 45 | 76 | 4.5 |
| 200-150-430 | 240 | 60 | 1480 | 39 | 45 | 78 | 5 |
| 200-150-410 | 300 | 50 | 1480 | 44 | 55 | 80 | 5 |
| 200-150-430 | 280 | 60 | 1480 | 47 | 55 | 78 | 5.5 |
| 200-150-420 | 400 | 50 | 1480 | 61 | 75 | 82 | 6 |
| 200-150-440 | 380 | 60 | 1480 | 64 | 75 | 80 | 6.5 |
| 200-150-470 | 300 | 70 | 1480 | 63 | 75 | 78.2 | 6 |
| 200-150-390 | 450 | 50 | 1480 | 75 | 90 | 82 | 6.5 |
| 200-150-450 | 420 | 60 | 1480 | 80 | 90 | 80 | 7 |
| 200-150-475 | 350 | 70 | 1480 | 81 | 90 | 82 | 7 |
| 250-200-425 | 430 | 70 | 1480 | 92 | 110 | 84 | 8 |
| 250-200-460 | 460 | 60 | 1480 | 94 | 110 | 82 | 8 |
| 250-200-470 | 560 | 60 | 1480 | 115 | 132 | 84 | 8.5 |
| 250-200-480 | 500 | 70 | 1480 | 110 | 132 | 84 | 8.5 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
https://www.jinbomarine.com/wry-high-efficiency-and-energy-saving-hot-oil-pump.html?ref=related
https://www.jinbomarine.com/wry-high-efficiency-and-energy-saving-hot-oil-pump.html?ref=related
China WRY High Efficiency And Energy Saving Hot Oil Pump
China WRY High Efficiency And Energy Saving Hot Oil Pump:
General description
This pump is using fluid mechanics principle,It Reduce the motor power Without reducing the circulation pump flow conditions To achieve the purpose of saving energy and reducing consumption.
Technical Parameter
This pump is using fluid mechanics principle,It Reduce the motor power Without reducing the circulation pump flow conditions To achieve the purpose of saving energy and reducing consumption.
Technical Parameter
| Model | Capacity | Head | Speed | Power | Efficiency | NPSH | |
| WRY | m3/h | m | rpm | Shaft | Motor | % | m |
| 150-125-260 | 150 | 16 | 1460 | 8.5 | 11 | 76 | 2.5 |
| 150-125-320 | 120 | 30 | 1460 | 12 | 11 | 74 | 3 |
| 150-125-270 | 160 | 18 | 1460 | 12 | 15 | 74 | 3 |
| 150-125-360 | 120 | 36 | 1460 | 11.76 | 15 | 74 | 4 |
| 150-125-380 | 130 | 40 | 1460 | 15 | 18.5 | 78 | 3.8 |
| 150-125-280 | 180 | 20 | 1460 | 15 | 18.5 | 78 | 3.8 |
| 150-125-320 | 200 | 32 | 1470 | 26 | 30 | 70 | 3.6 |
| 175-150-350 | 140 | 38 | 1470 | 20 | 22 | 70 | 3.6 |
| 175-150-380 | 160 | 48 | 1470 | 25 | 30 | 72 | 3.6 |
| 175-150-400 | 180 | 50 | 1475 | 31 | 37 | 75 | 4 |
| 200-150-400 | 260 | 50 | 1480 | 35 | 45 | 76 | 4.5 |
| 200-150-430 | 240 | 60 | 1480 | 39 | 45 | 78 | 5 |
| 200-150-410 | 300 | 50 | 1480 | 44 | 55 | 80 | 5 |
| 200-150-430 | 280 | 60 | 1480 | 47 | 55 | 78 | 5.5 |
| 200-150-420 | 400 | 50 | 1480 | 61 | 75 | 82 | 6 |
| 200-150-440 | 380 | 60 | 1480 | 64 | 75 | 80 | 6.5 |
| 200-150-470 | 300 | 70 | 1480 | 63 | 75 | 78.2 | 6 |
| 200-150-390 | 450 | 50 | 1480 | 75 | 90 | 82 | 6.5 |
| 200-150-450 | 420 | 60 | 1480 | 80 | 90 | 80 | 7 |
| 200-150-475 | 350 | 70 | 1480 | 81 | 90 | 82 | 7 |
| 250-200-425 | 430 | 70 | 1480 | 92 | 110 | 84 | 8 |
| 250-200-460 | 460 | 60 | 1480 | 94 | 110 | 82 | 8 |
| 250-200-470 | 560 | 60 | 1480 | 115 | 132 | 84 | 8.5 |
| 250-200-480 | 500 | 70 | 1480 | 110 | 132 | 84 | 8.5 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
https://www.jinbomarine.com/wry-high-efficiency-and-energy-saving-hot-oil-pump.html?ref=related
https://www.jinbomarine.com/wry-high-efficiency-and-energy-saving-hot-oil-pump.html?ref=related
China GB Marine Double Flanged Butterfly Valve with Worm Gear
China GB Marine Double Flanged Butterfly Valve with Worm Gear:
Design Standard: ISO
Size: DN50-DN1200
Working Pressure: 1.0Mpa,1.6Mpa
Operation Type: Lever or Worm Gear
Size: DN50-DN1200
Working Pressure: 1.0Mpa,1.6Mpa
Operation Type: Lever or Worm Gear
Main Material:
1-Body: Cast Iron, Ductile Iron, Cast Steel, Bronze, Stainless Steel, Aluminum Alloy.
2-Stem: Stainless Steel
3-Disc: DI or WCB with galv, Stainless Steel, Bronze
4-Gear: Ductile Iron
5-Seat: NBR, EPDM,CR,FKM,VITION,PTFE
6-Busing: PTFE
7-O ring: NBR
8-Pin: Stainless Steel
2-Stem: Stainless Steel
3-Disc: DI or WCB with galv, Stainless Steel, Bronze
4-Gear: Ductile Iron
5-Seat: NBR, EPDM,CR,FKM,VITION,PTFE
6-Busing: PTFE
7-O ring: NBR
8-Pin: Stainless Steel
The Service Temperature for Seat Material:
| Rubber Seat Material | Service Temperature range ℃ | Kind of Fluid |
| NBR | 0-70 | sea water, fresh water, bilge, ballat,liquefied gas,lubricating oil,fuel oil,cargo oil,hydraulice oil |
| CR | 0-70 | air |
| EPDM | 0-120 | sea water, fresh water, acid gas |
| FKM | 0-90 | cargo oil |
The flange size is manufactured according to ISO, JIS, GB, DIN standard.
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China supply Gravity Luffing Arm Type Davit
Product Description:
The davit to be designed for
embarkation when the boat in stowed position. The boat may be lowered without
stopping in a continuous movement at a minimum time.
Main Dimensions And Specfications:
| Maximum davit load | Dimensions | Winch load | |||||||
| A | B | C | D | E | F | G | H | ||
| 18KN | 986 | 1245 | 2450 | 4000 | 1000 | 1064 | 400 | 400 | 25KN |
| 25KN | 1068 | 1655 | 2640 | 4750 | 1220 | 1320 | 450 | 450 | 25KN |
| 40KN | 1150 | 1667 | 2790 | 5080 | 1250 | 1370 | 450 | 450 | 25KN/40KN |
| 50KN | 1150 | 2470 | 2760 | 7060 | 850 | 1500 | 480 | 480 | 40KN/48KN/50KN |
| 55KN | 1213 | 2002 | 2921 | 5250 | 870 | 1400 | 500 | 500 | 42KN |
| 68KN | 1300 | 2455 | 3020 | 7060 | 800 | 1500 | 480 | 480 | 50KN/63KN |
| 60KN | 1200 | 2050 | 2900 | 6680 | 1250 | 1450 | 500 | 500 | 50KN/63KN |
| 85KN | 1600 | 2590 | 3510 | 7935 | 950 | 1650 | 520 | 520 | 85KN |
| 100KN | 1650 | 2850 | 3850 | 8495 | 1100 | 1950 | 500 | 500 | 100KN |
| 120KN | 1700 | 2513 | 4120 | 7500 | 1200 | 2600 | 520 | 620 | 120KN |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China JZ Marine Shaft Mechanical Brake
China JZ Marine Shaft Mechanical Brake:
It is suitable for small and medium vessels
whose stern shafts need to be locked when they anchor.
Accept customization
Accept customization
| Specification | D | D1 | H | H1 | A | A1 | B | B1 | B2 | Weight (kg) |
| JZ60 | 60 | 450 | 360 | 640 | 320 | 260 | 160 | 110 | 160 | 84 |
| JZ70 | 70 | 450 | 360 | 640 | 320 | 260 | 160 | 110 | 160 | 83 |
| JZ80 | 80 | 450 | 360 | 640 | 320 | 260 | 160 | 110 | 160 | 82 |
| JZ90 | 90 | 450 | 360 | 640 | 320 | 260 | 160 | 110 | 160 | 81 |
| JZ100 | 100 | 450 | 360 | 640 | 320 | 260 | 160 | 110 | 160 | 80 |
| JZ110 | 110 | 520 | 400 | 700 | 380 | 320 | 200 | 150 | 200 | 124 |
| JZ120 | 120 | 520 | 400 | 700 | 380 | 320 | 200 | 150 | 200 | 123 |
| JZ130 | 130 | 520 | 400 | 700 | 380 | 320 | 200 | 150 | 200 | 122 |
| JZ140 | 140 | 520 | 400 | 700 | 380 | 320 | 200 | 150 | 200 | 121 |
| JZ150 | 150 | 520 | 400 | 700 | 380 | 320 | 200 | 150 | 200 | 120 |
| JZ160 | 160 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 190 |
| JZ170 | 170 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 188 |
| JZ180 | 180 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 186 |
| JZ190 | 190 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 184 |
| JZ200 | 200 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 182 |
| JZ210 | 210 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 300 |
| JZ220 | 220 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 295 |
| JZ230 | 230 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 290 |
| JZ240 | 240 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 285 |
| JZ250 | 250 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 280 |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
China Admiralty Anchor
China Admiralty Anchor:
Admiralty Anchor
Admiralty Anchor is two arms on one end of shank, stock is on the other hand of shank, which is ninety degrees to the arms. The weight is from 50KGS to 10000KGS.
If you have special requirement, please contact us.
Technical Specification:
Material: Casting Steel
Weight: 60KGS-2500KGS
Classification: LR, ABS, DNV, GL, BV, NK, KR, IRS and CCS Certificate.
https://www.jinbomarine.com/admiralty-anchor.html
Weight: 60KGS-2500KGS
Classification: LR, ABS, DNV, GL, BV, NK, KR, IRS and CCS Certificate.
https://www.jinbomarine.com/admiralty-anchor.html
Plate Type Fresh Water Generator
Plate Type Fresh Water Generator
Main Specification:
| Plate-Type Fresh Water Generator |
| Compact design for installation flexibility |
| High standard titanium used for evaporator and condenser |
| Compatible with a variety of heating sources |
| Standardized parts for easy maintenance |
The measruement/size may be different between the table and goods delivered, please check with us when order placed.
https://www.jinbomarine.com/plate-type-fresh-water-generator.html?ref=related
订阅：
博文 (Atom)
